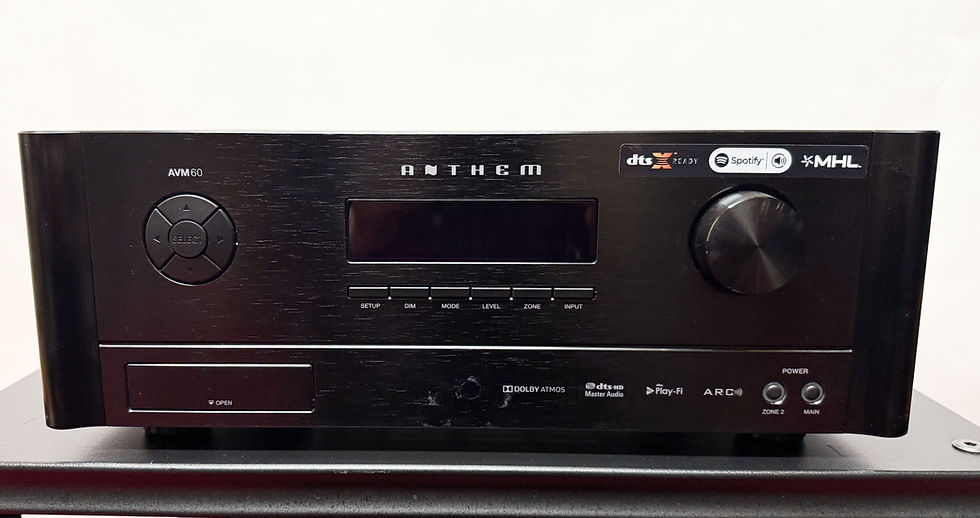

Used Anthem AVM60 11.2 Channel A/V PreProcessor for sale.
- Black finish
- Remote included
- No original box
-----
Audiophile-Friendly 11.2 A/V Processor
Multi-channel flexibility
Few A/V Processors offer the innovation and performance found in the all new AVM 60. Features include Dolby Atmos & DTS:X immersive audio decoding, support for UHD Blu-ray and 4K60 through HDMI 2.0a with HDR. HDCP 2.2 and 18.2 Gbps are also included allowing switching for compatibility with the latest video formats.
Audiophile-friendly features include a toroidal power supply, premium differential-output D/A converters with 32-bit conversion and sampling rate optimized filters for hi-res sound. Premium A/D converters with 106 dB signal to noise ratio ensure the highest- quality sound when using analog sources.
DTS Play-Fi offers easy-to-use music playback from popular streaming services and locally networked sources, controlled through iOS, Android or PC apps.
11.2 A/V Processor Channels
- Dolby Atmos®
- DTS:X™
- ARC™ Anthem Room Correction
- 4 Speaker Profile Memories
- Quad Core Digital Signal Processing
- Two Sub Out Jacks (parallel)
- Premium 32-bit / 768 kHz Differential-Output D/A Converters
- Wireless Network Connection
- DTS Play-Fi® + "Works with Alexa" certification – Local and Streaming
HDMI & Video
- HDMI 2.0a
- HDCP 2.2
- 4:4:4 Subsampling at 4K60 (18.2 Gbps)
- High Dynamic Range (HDR)
- Dolby Vision™ Compatible
- Hybrid Log Gamma (HLG)
- BT.2020 Color Gamut
- On-Screen Display with 4K 50/60
- 4K 50/60 Switching
- FM Tuner
- Low Standby Mode power consumption
- Remote control apps for iOS (Apple).
Decoding
- Dolby TrueHD
- DTS-HD Master Audio
Listening Modes
- AnthemLogic – (11.2 channels)
- Dolby Surround
- DTS Neo:6 – Cinema, Music
- All-Channels – All-Speaker Stereo
Inputs
- 8 HDMI inputs (7 rear and 1 front-panel input)
- Digital Audio Inputs: 2 Coaxial + 3 Optical
- 5 Stereo Analog RCA Inputs
- HDMI On-Screen Display – setup, video adjustments, status, song/artist info from radio stations
- MHL Supported Inputs
- xvYCC, Adobe RGB, Adobe YCC601, sYCC601, Deep color
- 2 Parallel Outputs
- Consumer Electronic Control (CEC)
- Audio Return Channel
- Standby Pass-through
Custom Installation
- IR Control
- RS-232 Control
- IR Input (Configurable)
- 12V Trigger Output
- Control System Drivers
Additional Features
- Backlit Remote Control
AVM 60 Specifications
| PREAMPLIFIER (MEASURED AT XLR OUTPUT) | |
| Maximum Output (<0.1% THD) | 8.4 Vrms, subwoofer channel 9.9 Vrms |
| Frequency Response (2 Vrms output) | 10 Hz — 35 kHz (+0, -0.25 dB) |
| Frequency Response, Analog-Direct (2 Vrms output) | 10 Hz — 80 kHz (+0, -0.25 dB) |
| THD+N (2 Vrms output) | -95 dB |
| S/N Ratio (2 Vrms output, IEC-A filter) | 110 dB |
| XLR Configuration | Pin 1: Ground, Pin 2: Positive, Pin 3: Negative |
| POWER CONSUMPTION | |
| Typical Load | 60 W |
| Standby | 0.3 W |
| Standby IP Control Enabled | 4.7 W |
| Standby HDMI Bypass Enabled | 8.2 W |
| DIMENSIONS | |
| Height | 6-1/2" (16.5 cm) |
| Height with Rackmount Kit | 4U |
| Width | 17-1/4" (43.9 cm) |
| Depth (not including power cord) | 14-1/2" (36.4 cm) |
| Weight | 20 lb (9 kg) |
| POWER REQUIREMENT | |
| 120 V version: | In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. |
| 220-240 V version: | In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. |
