Compact Wireless Music Streaming Amplifier
The POWERNODE EDGE is the perfect segue into “just add speakers” HiFi for the streaming age, combining streaming sources, control and amplification in a sleek and affordable device.
Add a little extra power with the POWERNODE EDGE, the perfect entry point into “just add speakers” HiFi for the streaming age, combining streaming sources, control, and amplification all in one place. Audiophile-grade componentry capable of up to 24 bits/192 kHz hi-res audio, and wireless multi-room capabilities with smartphone controls combine to make the POWERNODE EDGE a great ‘building block’ amplifier to start, extend or complete a hi-res streaming audio system of any size.
- Easily power a pair of passive speakers
- 40 Watts per channel of DirectDigital™ amplification technology handling 24 bit/192 kHz files
- A state-of-the-art Quad-Core 1.8GHz ARM® Cortex A53 Processor
- HDMI eARC connectivity
- Digital optical and analog input options, subwoofer output, and Bluetooth® wireless headphone output
- Dolby® Digital decoding
- Dual-band Wi-Fi, Gigabit Ethernet and support for 2-way Bluetooth® aptX™ HD
- Stream hi-res content from internet radio stations, cloud music services or your own local music players
- Intuitive control with the BluOS Controller app
- Elegant capacitive touch panel for quick-access controls (Play, Pause, Volume Up/Down, Previous/Next Track)
- Includes an easy-to-install, multi-orientation wall-mounting bracket
- IR remote learning capability – optional control using the RC1 Remote Controller
- Connect with the BluVoice skill to enable voice assistants like Alexa, Google Assistant and Siri to control Players around the home.
- AirPlay 2 lets you play music or podcasts from wireless stereo components throughout your house — all in sync.
JUST ADD SPEAKERS.
All you need to do is connect a pair of passive speakers to experience an incredible all-in-one HiFi solution. Easily connect wired sources, like a TV or turntable, with HDMI eARC or the combo analog/digital input. Add the PULSE SUB+ Wireless Subwoofer for a powerful but compact 2.1 stereo system or even use the POWERNODE EDGE to power the rear channels of a wireless Bluesound surround sound setup. Using the BluOS Controller App, select songs from popular streaming services like Spotify, Tidal, Qobuz, SiriusXM, from your own music library through Apple Airplay2, aptX™ HD Bluetooth®, or even a network-connected drive or USB hard drive.
COMPACT POWER
Bring your speakers to life with the powerful, punchy 2 x 40 watts DirectDigital™ amplifier in the POWERNODE EDGE, able to handle hi-res, 24 bit/192 kHz files and MQA-encoded tracks with ease. Enjoy clarity in playback of everything from densely-layered heavy metal tracks to whisper-quiet dialogue in movies and TV shows. The POWERNODE EDGE decodes Dolby® Digital content on its own and can also be used to power the rear channel speakers of a wireless home theater system.
SPACE SAVING
Your sonic oasis doesn’t have to take up all your real estate. With the POWERNODE EDGE, gone are the days of bulky, oversized amplifiers. Comparable in size to the average hardcover book, this small yet mighty HiFi system transforms any space into a high-fidelity haven.
HI-RES FOR EVERY CORNER
The sleek and compact form factor of the POWERNODE EDGE makes it ideal for secondary rooms like offices and back porches. Equip speakers in every corner of your house with power plus streaming and hide the POWERNODE EDGE away from sight in nooks like closets or behind sofas using the included multi-orientation wall-mount bracket.
INTUITIVE CONTROL
Control is always at your fingertips via the BluOS Controller app for iOS, Android, Mac, PC, or using the elegant capacitive touch panel for quick-access controls like Play, Pause, and Volume Up/Down, and Previous/Last Track. The POWERNODE EDGE connects to your home network via Wi-Fi or Ethernet. Hands-free control is possible with voice assistants like Siri, Alexa, and Google Voice. For professional smart home installers, full-feature drivers are available for Lutron, Crestron, RTI, Elan, and other popular control systems.

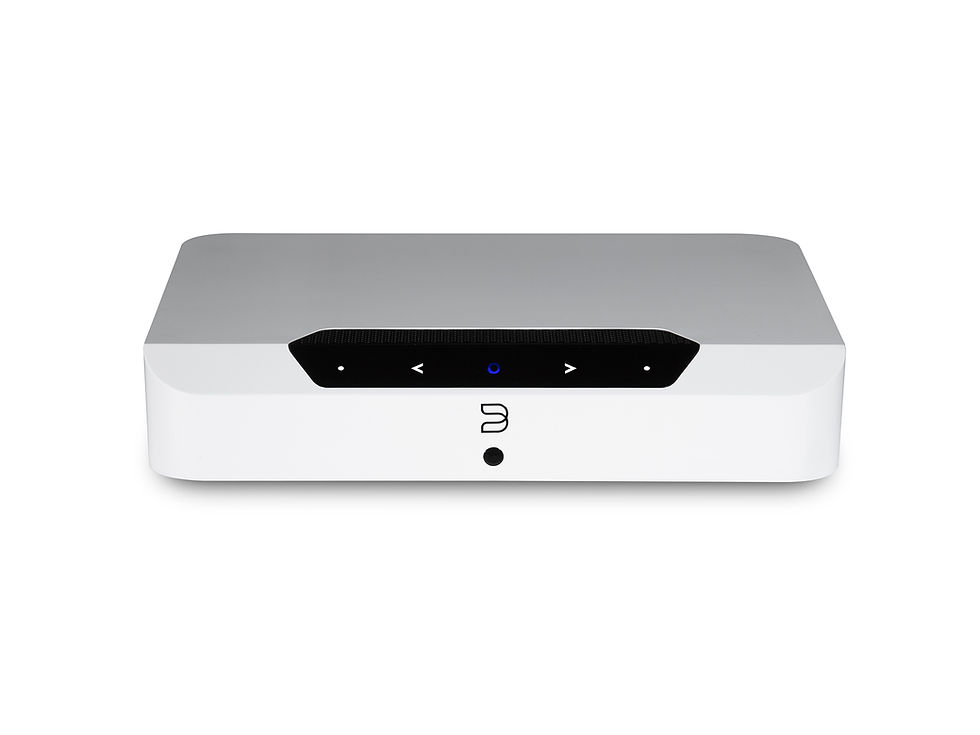

Bluesound Powernode Edge Streaming Amplifier
Tech Specs
Supported Audio File Formats
MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported Hi-Res Audio File Formats
FLAC, MQA, WAV, AIFF, MPEG-4 SLS
Supported Multi-Channel Audio Formats
Dolby® Digital
Native Sampling Rates
up to 192 kHz
Bit Depth
16-24
Audio Controls & EQ
BluOS Controller App
Signal-to-Noise Ratio
-91dBA
Distortion
THD+N, 0.008%
Amplification
DirectDigital™
Rated Power Output
40W x 2 (8 Ohms)
IHF Dynamic Power
80W (4 Ohms) / 50W (8 Ohms)
Minimum Impedance
4 Ohms
Operating System
BluOS
App Controller Operating Systems
iOS, Android, Windows, macOS
Processor
ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing
Server Message Block (SMB) up to 200,000 files
Album Art Supported
JPG, PNG
Voice Control Integrations
Amazon Alexa Skills
3rd-Party Integrations
AirPlay 2
Spotify Connect
Tidal Connect
Roon Ready
Control System Integrations
Control4, Crestron, URC, RTI, ELAN, Lutron
BluOS Home Theater
Yes - rear surround channels
Power Supply
Universal bi-pin AC cord input (100-240AC)
Ethernet/LAN
Ethernet RJ45, Gigabit 1000 Mbps
Wi-Fi Built In
Wi-Fi 5 (802.11ac), dual-band
Bluetooth Quality
Bluetooth 5.0 aptX HD
Bluetooth Connectivity
Two-Way (transmit & receive)
IR Optical Built In
IR Sensor Built In - front panel with IR Remote Learning
IR Input
3.5mm Jack
Optical/Analog Input
Combo - Mini TOSLINK/Stereo 3.5mm
HDMI Input
HDMI eARC
USB IN
Type A (Fat32 Formatted)
Headphone Output
Bluetooth only
Subwoofer Output
RCA x 1; Wireless to PULSE SUB+

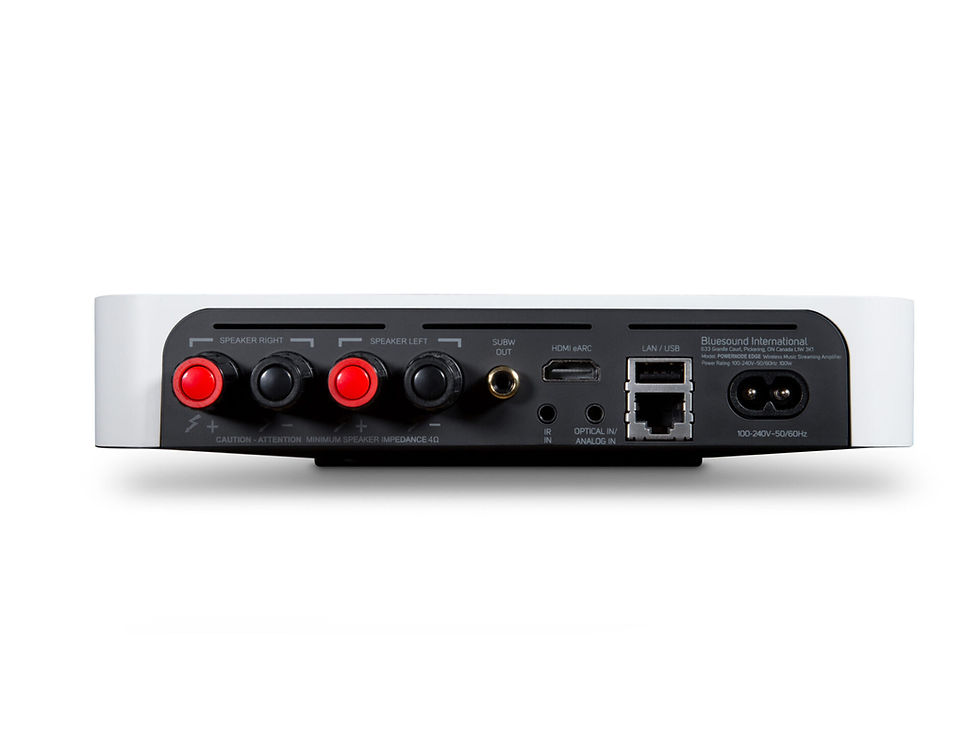

Speaker Terminals
5-Way Binding Post
Status Indicator
LED
Play/Pause Button
Touch LED
Volume Control Buttons
Touch LED
Previous/Next Track Buttons
Touch LED
Preset Buttons
In-App
Finish
Black/White; Matte Satin Paint
Included Accessories
120V AC Power Cord
230V AC Power Cord
Ethernet Cable
TOSLINK Optical to 3.5mm Mini Adapter
Metal Mounting Bracket
Metal Mounting Screw
Rubber Mount Attachment
Safety/Warranty Guide
Quick Setup Guide
Max Power Consumption
210W
Storage Environment
-10°C to 50°C, 20% to 80% relative humidity
Operating Environment
'0°C to 40°C
Product Weight
1.37kg/3.02lbs
Product Dimensions
219 x 44.5 x 193 mm
8.6 x 1.75 x 7.6 in
Shipping Weight
2.62kg/5.78lbs
Shipping Dimensions
300 x 300 x 95 mm
11.8 x 11.8 x 3.74 in
