The JBL 4329P Studio Monitor Powered Loudspeaker is a step-up version of the award winning JBL 4305P Studio Monitor Powered Loudspeaker, incorporating larger drivers, larger cabinet, higher amplification, all of which results in greater dynamics and overall higher performance.
- Patented JBL Driver Technologies: 2409H / 1-inch (25mm) Compression Driver with High-Definition Imaging™ Horn
- 600W Total RMS System Power
- Wireless Streaming Audio via Chromecast, AirPlay 2, and Bluetooth
The JBL 4329P Studio Monitor Powered Loudspeaker is a completely self-contained amplified loudspeaker system featuring high-resolution streaming audio and prosumer connectivity. Patented JBL acoustic technologies render sound with incredible accuracy and powerful dynamics, while extensive wired and wireless connectivity opens up a world of possibilities for the music lover. Each speaker is powered by a 300-watt amplifier, delivering 250 watts of power to the woofer and 50 watts of power to the compression driver. Both accurately controlled by sophisticated DSP processing assuring each driver blends seamlessly creating a dynamic and immersive listening experience. The integrated streaming engine provides both wired and wireless network audio capabilities via Google Chromecast built-in, Apple AirPlay 2, and Bluetooth 5.3 aptX Adaptive audio. A 24-bit/192kHz high-resolution DAC ensures your favorite music comes across with the highest fidelity. In addition to premium wireless audio, the 4329P provides extensive connections for analog and digital physical sources including a professional-grade combination XLR / ¼-inch TRS phono inputs for use with balanced or unbalanced signals.

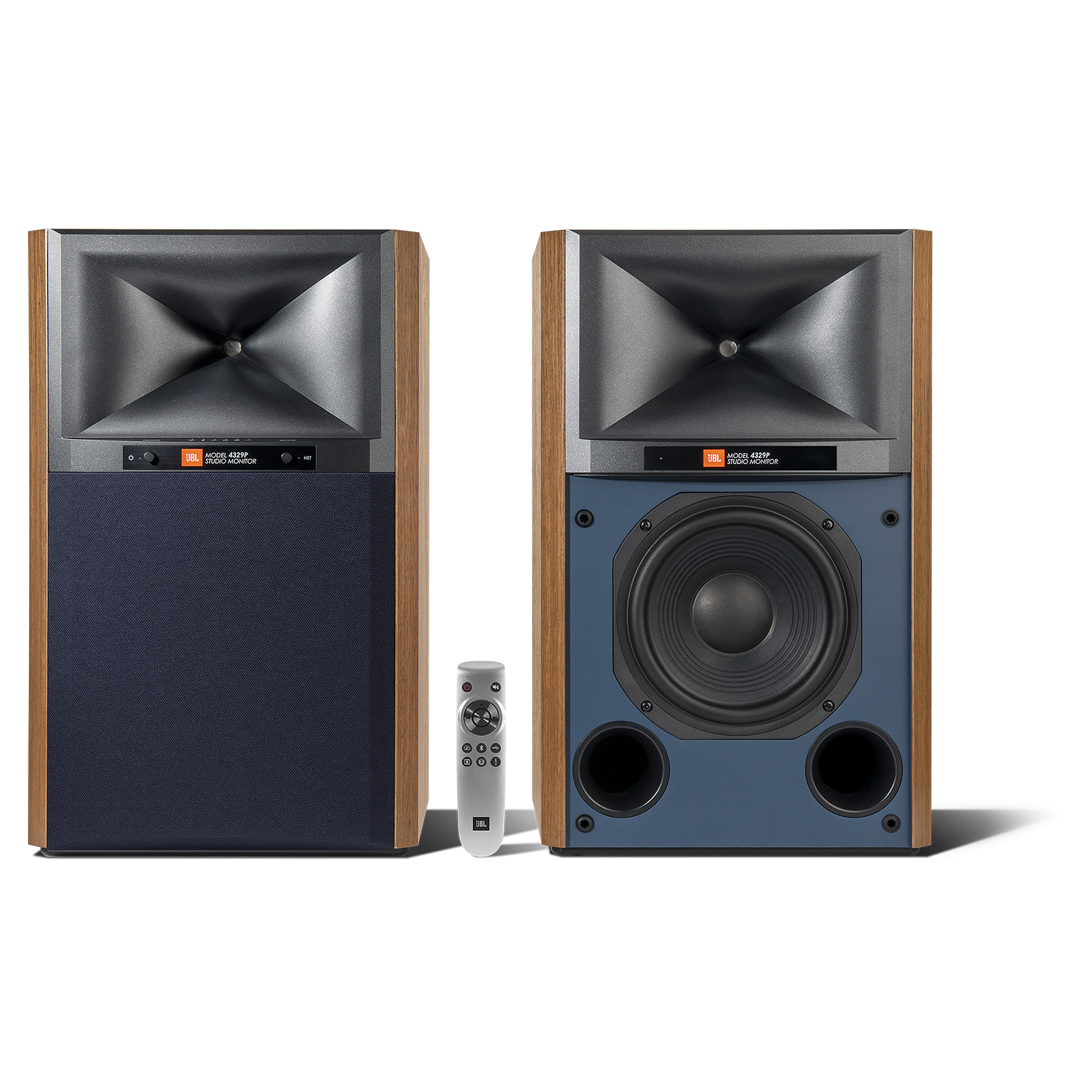

JBL 4329P Studio Monitor Powered Bookshelf Speakers
Tech Specs
Type
Bass-reflex Loudspeaker System with Built-in Amplification, DSP, and Wireless Connectivity
Low Frequency Drivers
JW200P-4, 8-inch (200mm) Pure-pulp Black Paper Cone Woofers with Cast-frames
High Frequency Drivers
2409H, 1-inch (25mm) Annular Ring, Teonex® Diaphragm Compression Drivers with Advanced HDI™ Geometry Horns
Amplifier Power
600W Class D System Power, 300W RMS per Speaker, (50W per HF Compression Driver + 250W per LF Woofer)
Audio Resolution
Up to 24-bit, 192 kHz (Digital Link connection between spks)
Audio Resolution
Up to 24-bit, 96 kHz (Wireless connection between spks)
Frequency Response
28 Hz - 25 kHz (-6 dB)
Crossover Frequency
1,675 Hz
Dispersion
90° Horizontal x 60° Vertical (2kHz to 15kHz)
Sound Controls
Front Panel
Wireless Inputs
WiFi streaming, Bluetooth 5.3
Wired Inputs (Analog)
XLR/¼" Combo and 3.5mm stereo
Wired Inputs (Digital)
Asynchronous USB-B and Toslink/Optical
Supported Digital Audio Sample Rates (PCM 2CH)
Streaming & Local Media - 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz SPDIF - Up to 192kHz USB-B - PCM 2-channel, up to 192kHz Bluetooth - Up to 48kHz, aptX Adaptive up to 96kHz
Music Formats Supported (Local Media)
AAC / AIFF / ALAC / DSD64 (to PCM) / FLAC / MP3 / MP4 / MQA / OGG / WAV / WMA
Subwoofer Output
Autosensing w/ Auto-engage of 80Hz High Pass Filter
Remote Control Type
BTLE Wireless
Bluetooth Audio Version
5.3
Bluetooth Audio Profiles
SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)
Enclosure
Bass-reflex Design with Dual Front-facing Ports, ¾" MDF Finished in Satin Walnut, Black Walnut, or White Aspen, Furniture-Grade Wood Veneer
Grille
Dark Blue (with Walnut Cabinet), Black (with Black Cabinet), or White (with Matte White Cabinet) Acoustically Transparent Cloth Grille
Net Speaker Dimensions with grille
20.3” H x12.6” W x 12.7” D (515.5mm x 320mm x 322.4mm)
Net Speaker Weight
Primary - 34.5 lbs (15.7kg), Secondary - 34.3 lbs (15.6kg)
Shipping Units of Measure
System Pairs
Gross Shipping Dimensions
25.59” H x 30.31” W x 16.46” D (650mm x770mm x 418mm)
Gross Shipping Weight
79.4 lbs (36.1 kg)
AC Input Voltage
100 - 240 VAC (+/-10%), 50/60Hz
