Kaleidescape Strato C combines all of the color and crisp detail of true 4K Ultra HD and HDR with stunning sound and the convenience of Internet delivery.
Kaleidescape designed the Strato C movie player to provide an immersive home cinema experience, with better audio and video playback quality than most commercial theaters.
Strato C plays movies in stunning 4K Ultra HD at up to 100 Mbps and 60 frames per second, without any startup delay. Unlike streaming services, each movie is downloaded and stored on a hard drive, on either a Kaleidescape Terra movie server or a Strato S movie player. Strato C also plays HD and SD digital movies in 4K using advanced upscaling algorithms.
Strato C supports lossless multichannel audio and plays high dynamic range movies on televisions and projectors that can process open standard 10-bit HDMI 2.0a HDR. The onscreen user interface is displayed in full 4K Ultra HD at 60 frames per second, resulting in fluid animation and a stunning visual impact. Strato C plays 4K Ultra HD movies from Terra movie servers as well as Strato and Strato S movie players. Strato C can also play HD and SD content from Alto movie players.

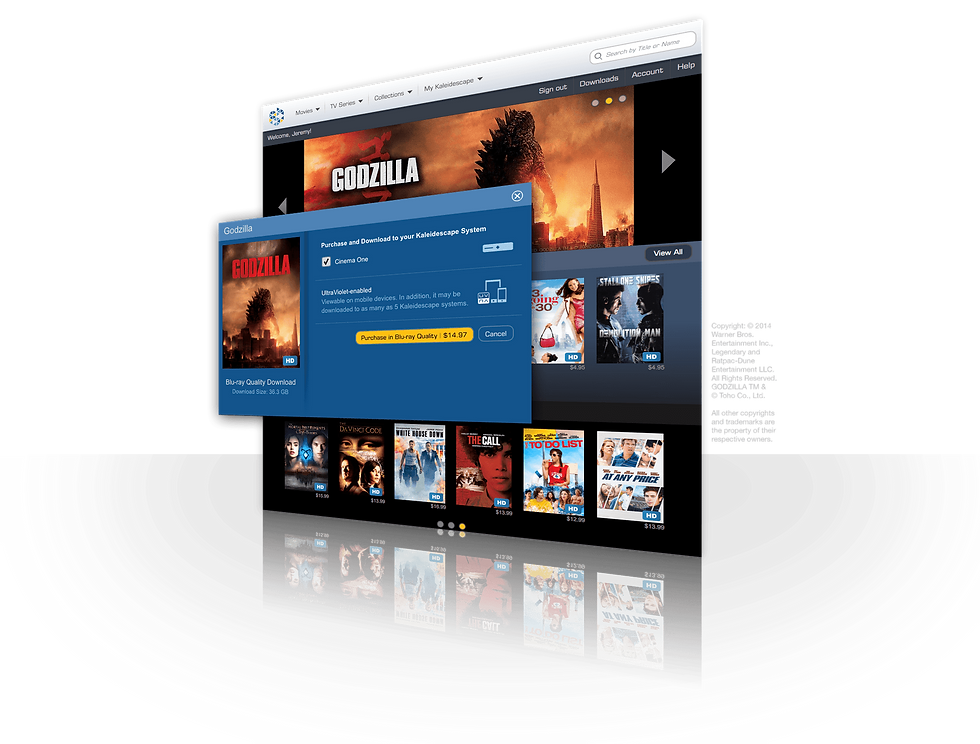

The Strato’s on-screen display provides access to the Kaleidescape movie store, the world’s only online source for movies with full-fidelity audio and video. The movie store offers a library of the finest content from Hollywood’s major studios and the largest selection of 4K UHD titles with HDR. Movies are available with lossless multichannel and object-based audio, including Dolby True HD Atmos and DTS:X.
Features
• Playback from hard drive or network
delivers true 4K Ultra HD with bit rates
up to 100 Mbps and frame rates up to
60 fps
• Support for high dynamic range (HDR)
• Compact form factor (2 players fit in 1
rack unit)
• Superb upscaling of Blu-ray and DVD
quality content to 4K resolution
• Seamless switching between 4K Ultra
HD, 4K upscaled Blu-ray quality or DVD
quality content, and the 4K onscreen
user interface
• Lossless multichannel audio, including
Dolby Atmos, Dolby TrueHD, DTS:X, and
DTS-HD Master Audio
• Strato C can play back from Terra movie
servers and Strato S movie players
• Compatible with popular control
systems and universal remotes
• Custom rack mount and wall mount
hardware is available (sold separately)
Kaleidescape Strato C 4K Movie Player
Tech Specs
DIMENSIONS
• 7.87in × 1.52in × 10.0in (W × H × D)
(20.0cm × 3.9cm × 25.4cm)
WEIGHT
• 4.2lb (1.91kg)
POWER
• Max consumption: 20W
• Typical: 17W
• High power standby: 12W
• Low power standby: 0.50W
• External power adapter: 100-
240VAC to 12VDC @ 5A, 60W with
detachable line cord
NETWORK
• Gigabit Ethernet (1000 Base-T)
OTHER CONNECTION
• USB 3.0 (reserved)
CONTROL
• Ethernet control from Crestron,
AMX, Control4, Savant, the
Kaleidescape App for iPad, and
other apps & control systems
• Front-panel IR receiver window
• IR input (1/8in mini plug)
ENVIRONMENT
• Operating temperature: 41 to 95°F
(5 to 35°C)
• Storage temperature: -4 to 140°F
(-20 to 60°C)
• Relative humidity: 20 to 80%
(operation) 5 to 90% (storage)
• Maximum operating altitude:
10,000ft (3,048m)
• Heat output: 69 BTU/hr (20W) max
• Airflow: 3.5 CFM (6 m3/hr) max
VENTILATION
• Minimum 1in (2.5cm) space at the
front
• Minimum 2in (5cm) space at the
rear
MOUNTS (sold separately)
• Rack shelf with faceplates is
available for mounting 1 or 2
(centered or side-by-side) Strato C
players in a 19in rack, 1U space
• Wall mount available for mounting
behind TV displays
CERTIFICATIONS
• CSA 62368-1
• CSA 60950-1
• IEC 62368-1
• IEC 60950-1
• FCC CLASS B
• CE
• RoHS Compliant
VIDEO OUTPUT
• HDMI 2.0a (labelled “VIDEO”)
• HDCP 2.2 copy protection
VIDEO DISPLAY FORMATS
• Resolutions: 2160p60/50/30/25/24,
1080p60/50/24, 1080i60/50,
720p60/50, 576i, 576p, 480i, 480p
• Chroma: 4:4:4 8-bit up to 2160p60,
4:4:4 10/12-bit up to 2160p30, 4:2:2
12-bit up to 2160p60, 4:2:0 8/10/12-
bit at 2160p50/60 only
• Color spaces: BT.2020, BT.709,
BT.601
• Aspect ratios: 1.78:1 and 2.35:1
(CinemaScape), automatic or user
interface selectable
• HDR: HDMI 2.0a with support for
SMPTE ST 2084 EOTF, SMPTE ST
2086 metadata
AUDIO OUTPUTS
• HDMI 2.0a (combined with video on
the VIDEO connector)
• HDMI 1.4 (audio-only on the
DIGITAL AUDIO connector)
• S/PDIF (coaxial RCA and
TOSLINK connectors)
AUDIO FORMATS
• Dolby Atmos
• Dolby TrueHD
• Dolby Digital
• DTS:X
• DTS-HD Master Audio
• DTS Digital Surround
• PCM
• MPEG audio
STORAGE
• No internal storage. Strato C
accesses content stored on a Terra
or Strato (with internal storage)
when connected via network
MEDIA
• Kaleidescape movie store
downloads, including high-bit-rate
4K Ultra HD movies in 10-bit color,
with and without high dynamic
range (HDR), and movies that
precisely match the quality available
on Blu-ray Disc and DVD
• DVD, DVD-R, DVD-RW, DVD+R,
DVD+RW (from Kaleidescape Disc
Server)
LIMITED WARRANTY
• 5 years
