- Moving Magnet phono cartridge
- Includes dust cover
The McIntosh MT2 Precision Turntable combines the latest in turntable technology and design to deliver both superb performance and accurate playback. The MT2 is a great way to upgrade your home audio system to play vinyl albums. A full complement of features allows for all recordings to be reproduced with flawless realism. Its advanced electronic and mechanical design will give you many years of smooth, trouble-free operation. A subtle green glow emanates from under the platter and the outside edges of the plinth for a touch of refined ambiance.
The MT2 plays both 33-1/3 and 45 rpm records. It’s virtually ready to use out of the box with just a few setup steps to complete and then you’ll be enjoying your vinyl in no time.
Sumiko Moonstone phono cartridge installed on the MT2 Precision Turntable.
The MT2 comes with a Sumiko Moonstone cartridge, a next-gen moving magnet phono pickup. The Moonstone phono cartridge is dressed to impress. It has low moving-mass and output, and is topped off with their listen-tested 0.3 x 0.7 mil elliptical diamond. Moonstone transcribes sonic imagery with weight, richness, depth, and keenly realistic texture. The sonic image is suspended and well-controlled over a nearly-absent noise floor, providing fantastic clarity without etch nor confusion.
The tonearm is constructed from dural-aluminum with special damping materials and is light weight yet highly rigid. The noise free vertical bearings feature two precision ceramic surfaces with damping fluid; the horizontal bearing is a gimballed sapphire design.
The belt driven, solid black outer platter is made from a special dynamically balanced polyoxymethylene (POM) and is over 1” thick. This heftiness helps to both resist and absorb external vibrations that can cause noise during playback; its large mass also provides the perfect flywheel action for stable playback speed. The inner platter is made of CNC-precision milled aluminum. The platters rotate on a polished and tempered steel shaft in a sintered bronze bushing.
The DC motor is driven by an external voltage-stabilized power supply and is completely decoupled from the chassis, isolating your records from any mechanical interference. Its sturdy plinth has a resonance optimized and highly compressed wood base with black lacquer finish, while the top and middle acrylic plates help absorb unwanted vibrations.
A clear, contoured dust cover is included. The MT2 turntable is compatible with a variety of McIntosh phono preamplifiers, stereo preamplifiers, integrated amplifiers and home theater processors with phono inputs; virtually any of our amplifiers and speakers can be used to complete your audio system.

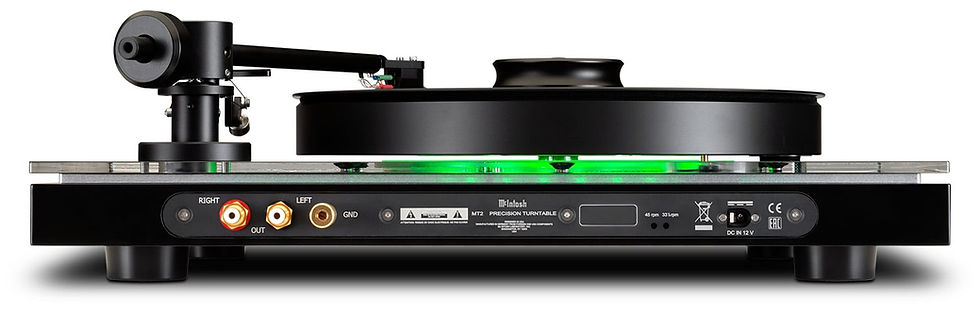

McIntosh MT2 Precision Turntable
Tech Specs
CARTRIDGE SPECIFICATIONS
-
Cartridge Type
Moving Magnet
-
Output Level
3.0 mV at 5 cm/s
-
Load Impedance
47K Ohms recommended (Preamp MM Input)
-
Frequency Response
12Hz to 33kHz
-
Channel Separation
30dB at 1kHz
-
Compliance
12 x 10-6 cm/dyne
-
Recommended Tracking Force
2.0 g
-
Channel Difference
0.5dB at 1kHz
-
Total Mass
6.5 g
-
Stylus
Elliptical Diamond
-
Cantilever Material
Aluminum
TONEARM SPECIFICATIONS
-
Bearing
Sapphire and Ceramic
-
Arm Tube
Dural-Aluminum
-
Counterweight
Eccentric
-
Adjustments
Vertical Tracking Angle, Antiskate, Azimuth
TURNTABLE SPECIFICATIONS
-
Playback Speeds
33-1/3 and 45 rpm
-
Motor Type
DC Motor with Stainless Steel Brushes
-
Speed Control
Servo System
-
Platter
Dynamically balanced polyoxymethylene (POM)
-
Platter Bearing
Polished and tempered steel shaft in sintered bronze bushings
-
Signal To Noise Ratio
35dB - 40dB
-
Wow & Flutter
0.15% - 0.25%
CONNECTIVITY
-
Stereo Outputs Unbalanced
1
CONTROL
-
Power Control Input
0
-
Power Control Output
0
-
Platter Light
N/A
-
Speed Control Fine Adjustment
Yes
GENERAL SPECIFICATIONS
-
Dust Cover Included
Yes
WEIGHTS & DIMENSIONS
-
Unit Dimensions (W x H x D)
17-13/16" (45.2cm) x 5" (12.7cm) (6" (15.2cm) with dust cover) x 17" (43.2cm)
Note: Tone Arm Height will vary depending on the type of Cartridge installed. -
Unit Weight
29 lbs (13.2 kg)
-
Shipping Weight
39 lbs (17.6 kg)
