CLASS & POWER
Deep bass extension.
Strength and Design at the highest level.
BLAST FROM THE PAST
Sonus faber is not new to the arena of subwoofer design and engineering. The first subwoofer project, the Gravis FB100, was launched back in 1986, and ten years later was born Sonus faber Cremona M. Today, with the new Gravis Collection, Sonus faber returns to its roots, merging an ever-increasing cutting-edge technology while maintaining its identity of natural sound and quality Italian hand-craftsmanship.
ALL-ROUND COLLECTION
Gravis collection, the active subwoofers line dedicated to the reproduction of low frequency, is able to match all Sonus faber full-range loudspeakers collections. Gravis III naturally fits in with the Olympica Nova collection.
REFINEMENT AND ELEGANCE
The Gravis III subwoofer one of the most powerful and high-end models of the active systems line, and has been designed to be the perfect complement to all the loudspeakers collections that marked the history of Sonus faber. Aesthetically connected by the body enriched by a black leather covering, they differ from each other by the finishes of the hand-finished wooden top.
FEATURES
The Gravis III is one of the most powerful active subwoofers Sonus faber has ever designed in order to optimize the dynamic impact and the sonic reproduction depth.

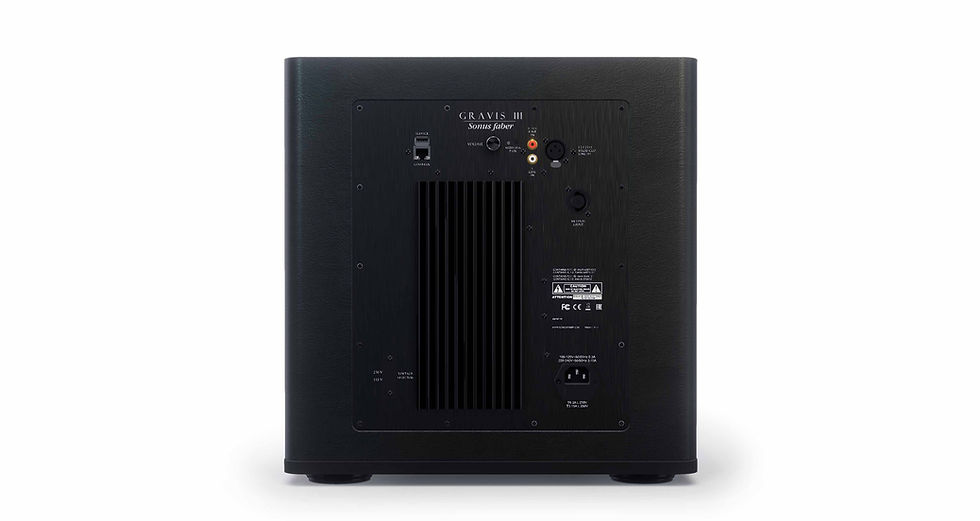

Sonus Faber Gravis III 10" Powered Subwoofer
Tech Specs
SYSTEM
Sealed box loading, single driver, active subwoofer
SPEAKERS
1 x 250 mm (10”) long throw, sandwich honeycomb cone, wide rubber surround LF unit
AMPLIFICATION
High performance, Class AB. 600 W (nominal), 900 W (peak)
FREQUENCY RESPONSE
25 Hz (@- 6dB, acoustic Linkwitz 4th order roll-on, default setting) to Fc (user continuously adjustable)
MAINS INPUT VOLTAGE
100-120Vac – 50/60Hz or 220-240 Vac – 50/60 Hz. Factory selected
FUSE
T6.3A L250V
(100-120 Vac – 50/60 Hz)
T3.15A L250V
(220-240 Vac – 50/60 Hz)
CONTROLS
Direct access Master volume;
APP control featuring: 4 selectable presets, volume, continuously adjustable crossover frequency (40 to 150 Hz , filtering slope 24 dB/oct); continuously adjustable signal phase (0° to 360°); up to 8 parametric EQ filters, delay (1 to 20 ms); automatic room calibration; selectable threshold auto power on/off
AUDIO SIGNAL INPUTS
2 x LINE (unbalanced), Left and Right/LFE - RCA plugs
1 x LINE (balanced) - XLR plug
HIGH LEVEL - Neutrik 4-pole Speakon© plug
POWER CONSUMPTION
< 2 W (Stand-by)
700 W (rated power)
DIMENSIONS (HXWXD)
415 x 400 x 495 mm
16.3 x 15.7 x 19.5 in
WEIGHT
26.7 Kg
58.8 lb
