A powerful presence
Since its inception, the Wind has been appreciated for its avant-garde design and superior sonic architecture. Its complex cabinet geometry has masterfully made this dynamic, multi-driver speaker sound “Totem Great”.
A totally unique (4x) driver 3-way speaker system, the Wind stands for flexibility and truly full-range expressiveness. The multiple midranges allow for an incredible amount of musically informative material to transpire in space with ease. The sound level possibilities of this large dynamic system also facilitate large and complex musical demonstrations. Design and performance are brought forth in a flexible and manageable equilibrium.
Design Highlights
- Avant-garde design
- Superior sonic architecture
- Complex cabinet geometry
- Absolute surreal holographic imaging
- Available in exotic veneer finishes
Technical Features
- Totally unique (4x) driver 3-way speaker system
- On- and off-axis point source imaging
- Specially damped, long-throw woofer
- Special low resonance tweeter with chamber
- Multiple midranges
- Extreme-quality hard-wired crossover
Bespoke Acoustic EngineeringCustomized Drivers
Every single driver is completely unique to Totem and proprietary in design, engineered by Totem and then manufactured to the strictest standards to meet their parameters by the finest raw driver suppliers in the world. In some cases, where the technology is beyond the capabilities of suppliers or is wished to kept secret, Totem can and will build their own drivers. Every driver exhibits phase linearity, speed, emotion, off axis natural presentation, and spatial articulation.
Handmade Crossovers
With Point-to-Point Connections
Totem crossovers don’t require many parts because of the synergy between their customized drivers, but the components are the world’s best. Totem's crossovers aren’t built on PCB’s because the laminated conductive tracks are weak and inconsistent. Instead they are secured to a thin piece of fiberboard or insulated polymers and components are mechanically crimped together because it simply sounds better. When they must solder, Totem chooses WBT Silver Solder, the purest in the industry.
Artisanal Cabinet Construction
Master Craftsman Woodwork
Meticulously handcrafted for peak performance that lasts decades. Lock-Miter assembly is an intricate woodworking procedure where edges physically interlock together. The resulting cabinet is up to 5 times stronger than conventional V Groove cabinets. Internal and external veneering resists warping, structurally fortifies, and ensures consistent peak performance. Industry unique Borosilicate damping manages dissipation, keeps the cabinet musically alive, and never deteriorates. Popular materials like poly fillers eventually decay, dramatically affecting the performance. Variable Density Fiberboard is denser at the extremities than the interior to reduce repetitive nodes and resonances.
Connectors
WBT Bi-Wire / Bi-Amp
Premium WBT connectors are the preferred choice by all audiophiles. WBT connectors lets the signal through without interfering or affecting it. Superior connectors like WBT connectors will prevent any signal loss and get the most out of the entire system.
Sound Isolation
Claw
Machined from solid aluminum, the unique geometric shape breaks up surface standing waves and controls surface resonance as it acoustically decouples the speaker. Can be used with or without ball bearing, depending on surface. It provides improved bass response and imaging.

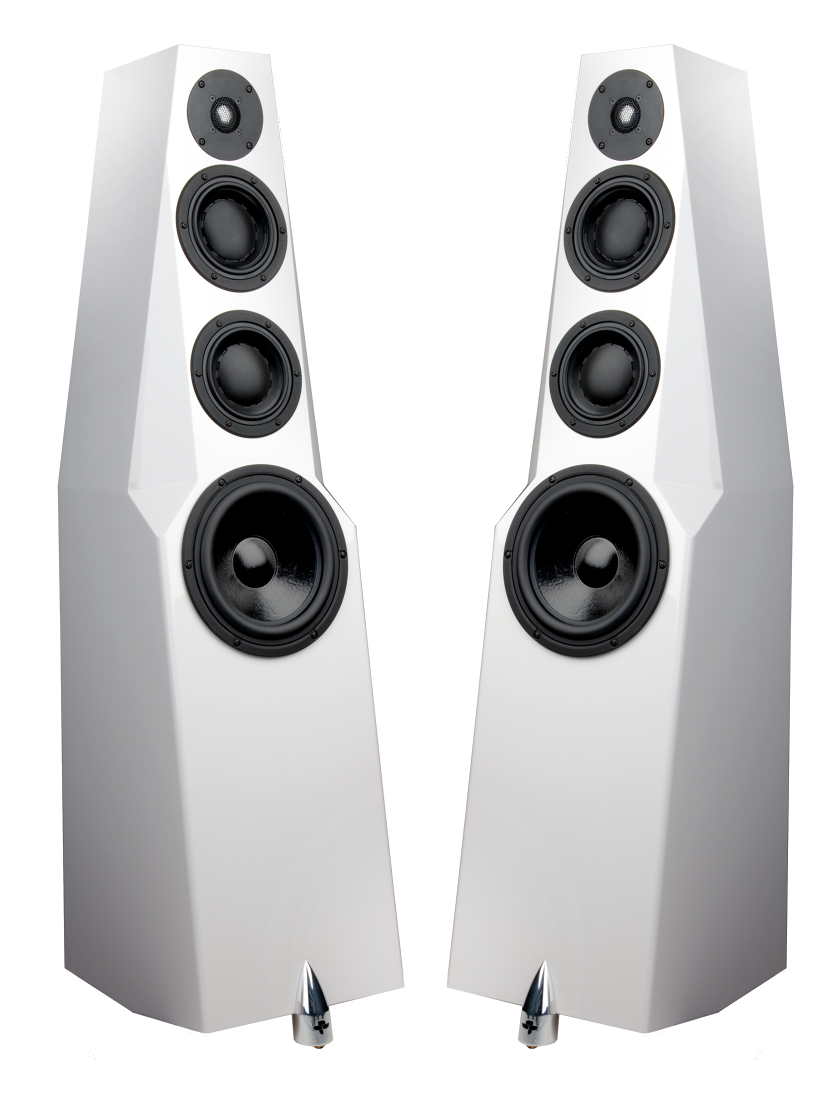

Totem Acoustic Wind Floorstanding Speakers
Tech Specs
Frequency Response: | 24 Hz – 21 kHz ± 3 dB (in room) |
Recommended Power: | 80 – 250 W |
Woofer: | 8.5″ / 21.59 cm cast frame, specially damped. |
Midrange | 2×5.5″ with 3″ / 7.62 cm voice coil. Cast frame. High power handling, wrap around neo magnet structure, accurate linear throw |
Tweeter: | 1″ / 2.54 cm alloy dome flexible linear suspension, low resonance, chamber |
Impedance: | 4 ohms |
Sensitivity: | 87 dB |
Dimensions (w x h x d): | 10.7″ x 44.3″ x 14″ / 27.18 x 112.522 x 35.56 cm (over max. size) |
Placement from rear wall: | 3′ – 7′ / 91.44 – 213.36 cm |
Placement distance apart: | 6′ – 14′ / 182.88 – 426.72 cm |
Break-in Time: | 200 – 250 hours |
Crossover Frequency: | Woofer to mids, 2nd order / 2nd order, mids to tweets 2nd order 2nd order |
Speaker Terminals: | Bi-wireable, Gold WBT connectors |
Weight | 74.8lb / 34kg |
